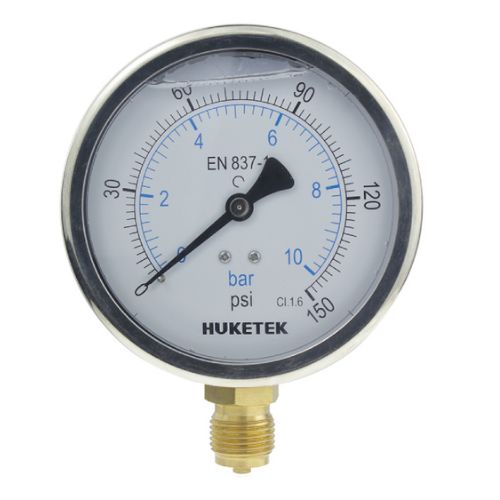

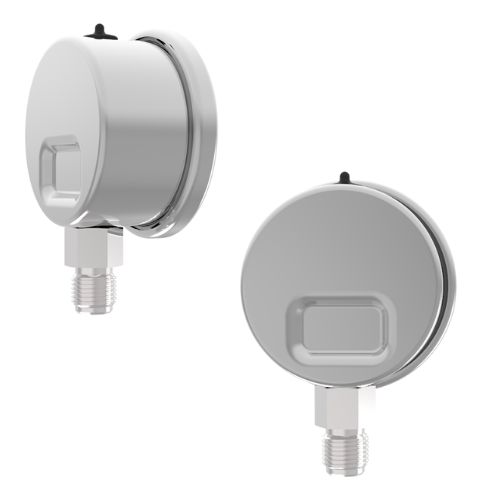

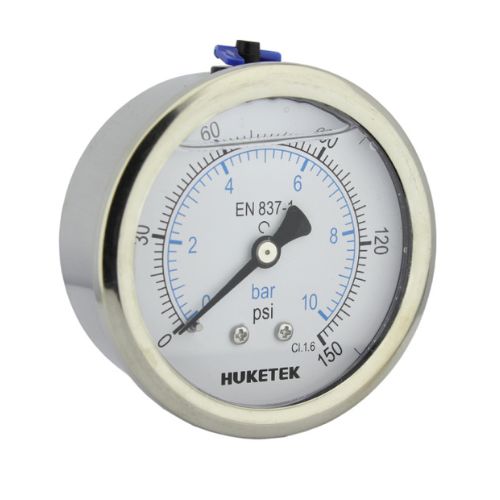

A101A 40MM Glycerine filled Bottom Mount Pressure Gauge
The Huketek 101 series pressure gauges are filled with glycerine oil, which is used to resist vibration and pulsation, these gauges are suited to a broad range of plant, process, hydraulic, and fluid power applications.
- 40 mm gauge face
- 304 stainless steel case
- brass connection and movement
- crimped bezel
- 1/8 inch BSP Connection
- glycerine filled
- polycarbonate window
- 1.6% FS Accuracy
The A101A is available in 4 ranges = 0-1000 kPa, 0-1600 kPa, 0-2500 kPa, and 0-4000 kPa
- INA101A-B8-A1000
- INA101A-B8-A1600
- INA101A-B8-A2500
- INA101A-B8-A4000
Specifications for the A101A Glycerine filled 40mm Pressure Gauge
|
Case |
SS304, Polished |
|
Ring |
SS304, Polished |
|
Window |
101:Polycarbonate |
|
Dial |
Aluminum |
|
Pointer |
Aluminum |
|
Connection |
Brass |
|
Movement |
Brass |
|
Bourdon tube |
Phosphorus Bronze |
|
Thread size |
1/8'’,1/4'’,3/8'’,1/2'’ |
|
Accuracy |
1.6% |
|
Pressure range |
VAC~9PSI~15000PSI |
