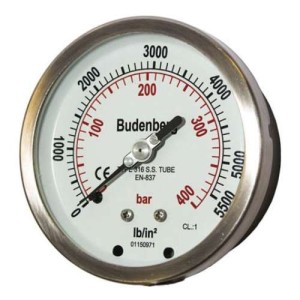

Budenberg 736 100mm Rear Mount Pressure Gauge
The Budenberg Classic 736 range of Pressure Gauges have been designed to meet the high demands of the process industry. From harsh corrosive chemical applications to general engineering uses, the Classic combines a high specification with a very cost effective price. The standard unit incorporates 316 stainless steel wetted parts that are housed within a liquid fillable 316 stainless steel case.
Standard units are avalable as dual scale bar kPa and psi but custom scales can be supplied (as a special order). 316L wetted parts and cases are available as an option. Available with a wide range of accessories including: Syphons, Snubbers, Gauge Savers, Manifolds, Diaphragm Seals etc ensures that Budenberg can provide you with the right product to suit any individual application or requirement.
Features & Specifications of the Budenberg 736 rear entry panel mount pressure gauge
Size
100 mm (4”)
Mounting
Rear Mount
Case & Bezel
One-piece open front case in 316 Stainless Steel with a safety blow out disc in the back. Polished Bezel with Bayonet Locking mechanism. 316L wetted parts and cases are available as an option.
Scale Ranges
0 to 1 bar to 0 to 1400 bar or equivalent units of pressure / vacuum are available
Pressure Element
≤80 Bar – 316 Stainless Steel Bourdon Tube ≥81 Bar - 316 Stainless Steel Coil 316L wetted parts and cases are available as an option.
Overload
Units withstands overload pressure up to 130% of FSD 150% of FSD is optional. Please refer to our sales office
Pressure Connection
1/2" BSP
Accuracy Class
CL:1 1.0% of FSD as defined in EN837-1 as standard
CL: 0.5% available as an additional cost option
Temperature
Operating: -40 to +60 ºC
Storage: -40 up to +100 ºC
Temperature Effect
Max 0.4% / 10K
Dial
White Anodised Aluminium marked in black finish Dual scale kPa / psi is standard but customised dials are available
Pointer Black
Aluminium Micrometer Adjustable Pointer
Movement
304 Stainless Steel Construction
Options: Case filling with glycerine or other fluids is available Viscous Damped Movement is available
Window
Toughened Safety Glass
Environmental Rating
IP67 as defined in EN 60 529
Certification available
BS EN 10204 3.1B Material Certification
Point by Point Test
Certificate Safety
All units are manufactured to comply with EN 837-1 specification and other regulatory standards including PED.
Installation instructions
Refer to EN 837-2
