A101A 40MM Glycerine Bottom Entry Pressure Gauge
A301A 40MM Plastic Bottom Entry Pressure Gauge

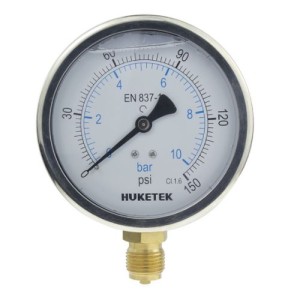

A102A 40MM Glycerine filled Bottom Mount Pressure Gauge

Brand: Hunan Huketek Trading Co.,Ltd
Product Code: INA102A

Price: $17.70
Ex Tax: $16.09

Available Options

* Pressure Gauge Range:

Select your Pressure Gauge Range from the dropdown list

- +

The Huketek 101 series pressure gauges are filled with glycerine oil, which is used to resist vibration and pulsation, these gauges are suited to a broad range of plant, process, hydraulic, and fluid power applications.



  • 40 mm gauge face
  • 304 stainless steel case
  • brass connection and movement
  • crimped bezel
  • 1/8 inch BSP Connection
  • glycerine filled
  • tempered glass window
  • 1.6% FS Accuracy



The A102A is available in 4 ranges = 0-1000 kPa, 0-1600 kPa, 0-2500 kPa, and 0-4000 kPa
  • INA102A-B8-A1000
  • INA102A-B8-A1600
  • INA102A-B8-A2500
  • INA102A-B8-A4000



 Specifications for the A102A Glycerine filled 40mm Pressure Gauge



 Case

  SS304, Polished

 Ring

  SS304, Polished

 Window

  Tempered Glass

 Dial

  Aluminum

 Pointer

  Aluminum

 Connection

  Brass

 Movement

  Brass

 Bourdon tube

  Phosphorus Bronze

 Thread size

  1/8'’,1/4'’,3/8'’,1/2'’

 Accuracy

  1.6%

 Pressure range

  VAC~9PSI~15000PSI

A101 Series Gauge Dimensions
