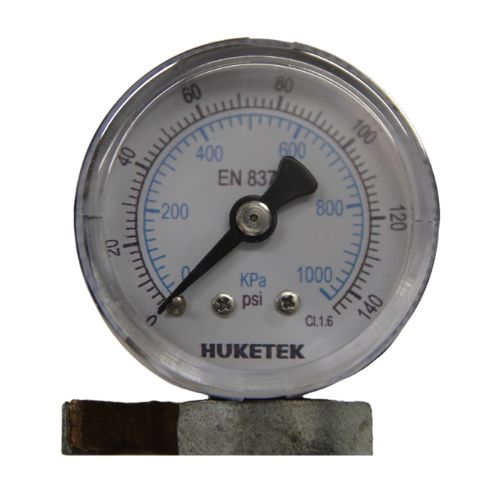

B301A 40MM Plastic Bottom Mount Pressure Gauge
The Huketek B301 series is a bottom-mount plastic pressure gauge that has been designed for general purpose of industrial and daily use at low cost.
- 50 mm gauge face
- plastic case
- brass connection and movement
- 1/8 inch BSP Connection
- acrylic window
- 2.5/2% Accuracy
The B301A is available in 4 ranges = 0-1000 kPa, 0-1600 kPa, 0-2500 kPa, and 0-4000 kPa
- INB301A-B8-A1000
- INB301A-B8-A1600
- INB301A-B8-A2500
- INB301A-B8-A4000
Specifications for the B301A Plastic 50mm Pressure Gauge
|
Case |
ABS |
|
Ring |
None |
|
Window |
Acrylic |
|
Dial |
Aluminum |
|
Pointer |
Aluminum |
|
Connection |
Brass |
|
Movement |
Brass |
|
Bourdon tube |
Phosphorus Bronze |
|
Thread size |
1/8'’,1/4'’,3/8'’,1/2'’ |
|
Accuracy |
1.6% |
|
Pressure range |
VAC~9PSI~15000PSI |
