B301A 50MM Plastic Bottom Entry Pressure Gauge
B102A 50MM Glycerine Bottom Entry Pressure Gauge

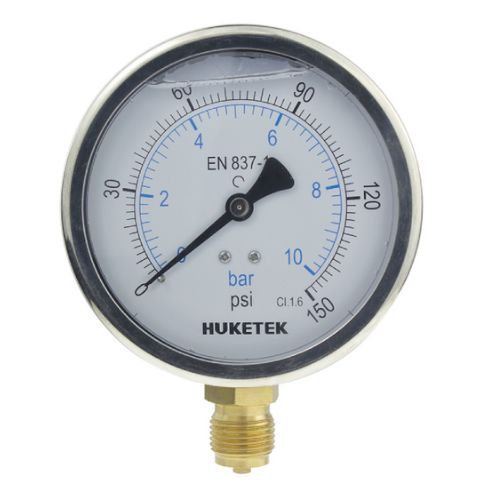

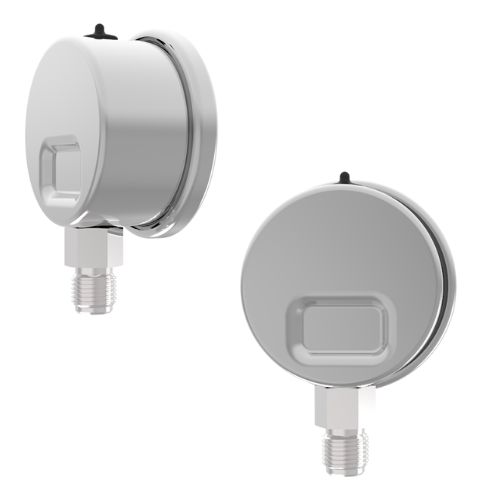

B101A 50MM Glycerine filled Bottom Mount Pressure Gauge

Brand: Hunan Huketek Trading Co.,Ltd
Product Code: INB101A

Price: $21.18
Ex Tax: $19.25

Available Options

* Pressure Gauge Range:

Select your Pressure Gauge Range from the dropdown list

- +

The Huketek 101 series pressure gauges are filled with glycerine oil, which is used to resist vibration and pulsation, these gauges are suited to a broad range of plant, process, hydraulic, and fluid power applications.



  • Liquid Filled: Glycerine

  • Wetted Part: Brass + Phosphor bronze

  • Body: SS304

  • Connection Type: 2 Parts

  • Protection: IP68

  • Pressure Range: VAC~0.6bar~1000bar

  • Accuracy: 1.0%



The B101A is available in 4 ranges = 0-1000 kPa, 0-1600 kPa, 0-2500 kPa, and 0-4000 kPa
  • INB101A-B4-A1000
  • INB101A-B4-A1600
  • INB101A-B4-A2500
  • INB101A-B4-A4000



 Specifications for the B101A Glycerine filled 40mm Pressure Gauge



 Case

  SS304, Polished

 Ring

  SS304, Polished

 Window

  Polycarbonate

 Dial

  Aluminum

 Pointer

  Aluminum

 Connection

  Brass

 Movement

  Brass

 Bourdon tube

  Phosphorus Bronze

 Thread size

  1/8'’,1/4'’,3/8'’,1/2'’

 Accuracy

  1.6%

 Pressure range

  VAC~9PSI~15000PSI

B101 Series Pressure Gauge Dimensions
