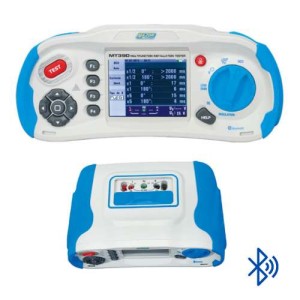

Multifunction Installation Tester

Brand: Major TECH
Product Code: ELMT390

Price: $2,365.00
Ex Tax: $2,150.00

- +

The MT390 is a fast and accurate Multifunction Installation tester which makes testing installations easy and ensures that it is safe and complies to regulations and is a must have in an electrician’s arsenal. It is the most cost effective MFT on the market and is a firm favourite with electrical installers and commissioning engineers.

The unit features Voltage Measurement, Insulation resistance, Low Ohm measurement, Loop/PSC measurement, RCD measurement, Earth resistance measurement, Phase rotation and shows mains voltage with frequency on screen.

The MT390 has soft key and menu options allowing the user to access the easy-to-use menu to select and change parameters and a friendly “Help” option displays a wiring diagram on screen to ensure correct connection. With safety in mind, the meter connections panel has a protective slide that prevents incorrect connection while charging and communicating with the meter. The 3.5” TFT screen displays multiple readings clearly and are visible from all angles.

The instrument allows the user to save, review and label recordings. The all-in-one design includes Bluetooth file transfer and an internal memory with easy-to-use software that eliminates time consuming paperwork while testing multiple sites. The Bluetooth app allows the user to instantly share a measurement to a smartphone, both iOS and Android devices are supported and the test report can be shared instantly via email in CSV format.

Other connection options include Mini USB, S-Video TV out and MicroSD. The rugged double injection rubber housing withstands the knocks and bangs of everyday heavy use and is supplied in a hard plastic carrying case. The MT390 complies with the IEC 61010 CAT IV 400V safety ratings.

Features of the MT390 Multifunction Installation Tester

  • 3.5” TFT colour LCD display 320 x 240 pixels
  • Insulation, Continuity, Earth Resistance
  • Variable RCD test with Pass/Fail indication
  • Line Voltage with Frequency
  • Loop and PSC test, Phase Rotation
  • Transmit recorded data via Bluetooth / SD Card / USB
  • Voltage recording with Graph
  • Combined readings on the images
  • Safety design with sliding shield plate to avoid electric shock
  • Standard accessories: Earth Resistance Spikes and Leads, shoulder strap, 12V and 240V chargers for batteries

Specifications of the MT390 Multifunction Installation Tester

 Function Range Resolution Accuracy
 Continuity 4-400.0Ω 0.001Ω ±(1.5% + 30 Digits)
 Insulation Resistance 125/250/500/1000V 0.125 – 4000MΩ ±(2% + 10 Digits)
 Loop Range 0 – 999Ω 0.01Ω ±(4% + 6 Digits)
 RCD x 5, x 1, x 1/2, auto ramp mA   15/30/50/100/200/500/650/1000mA
 Measuring Range 2000ms   ±(1% + 3)
 Voltage Measurement 80V – 500V 1V ±(2% + 2 Digits)
 Frequency Response 45-65Hz 1Hz ±(2Hz)
 Earth Resistance 99.99/2000Ω 0.01Ω ±(2% + 30 Digits)
 PSC/PFC 0 - 50kA Derived from Loop and Voltage measurement
 Short Circuit Current >200mA
 Rated Current 1mA
 Loop Impedance L-PE, L-PE(ATT), L-N, L-L
 Test Current 8.0A – 25.0A
 Phase Angle 0° to 180°
 PC Interface USB/Bluetooth
 Display 3.5″TFT Display
 Memory SD Card
 Back Light Yes
 Enclosure Over Moulded case
 Low Battery Indication Yes
 Batteries 8x 1.2V AA Size rechargeable Ni-MH batteries
 Weight 1.56kg
 Dimensions 220 x 95 x 61mm
 Warranty 2 Years
 Safety Specs IEC61010-1 CAT III 400V






Accessories for the MT390 Multifunction Installation Tester

  • Carrying Case
  • Neck Strap
  • Test Leads (Test Leads with remote switch, AUS Socket Test Lead, Insulation Test Lead, Phase rotation Test Lead with Croc Clips)
  • USB Cable
  • Software
  • 3 Wire Cable (Earth Resistance Test Leads)
  • Aux Earth Spikes
  • 8 x AA Rechargeable Batteries
  • Instruction Manual
