200A AC Open Jaw TRMS Clamp Meter

Brand: Major TECH
Product Code: ELMT715

Price: $236.50
Ex Tax: $215.00

- +

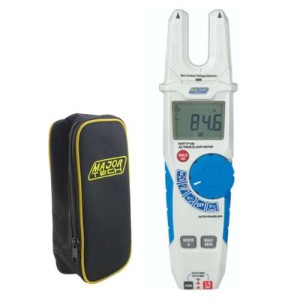

The Major TECH MT715 is a CAT IV 600V, 6000 count True RMS 200A AC digital clamp meter with indication on a large backlit LCD display, with a clamp jaw opening of Ø16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings.

The meter measures 1000V AC/DC, capacitance and resistance measurements, with a Min and Max mode. The LowZ range function has a low pass filter to eliminate errors caused by “Ghost” voltages and has features of Non-Contact Voltage detection, diode test function, a continuity buzzer and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.

Features of the MT715 TRMS Clamp Meter

  • 6000 count LCD display
  • Open Jaw Sensor
  • Ø16mm Cable Clamp size
  • Measures DC voltage and AC TRMS voltage up to 1000V
  • Capacitance to 4000µF
  • NCV – Non-Contact Voltage Detector
  • Low input impedance prevents false readings due to “Ghost” voltage (LoZ)
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Min/Max and Data Hold function
  • Auto Power Off

Specifications of the MT715 TRMS Clamp Meter

 Function Range Resolution Accuracy
 AC Current 0.1A – 200A 100mA ±(3.0% + 5 Digits)
 DC Voltage 1mV – 1000V 1mV ±(1.0% + 2 Digits)
 AC Voltage 1mV – 1000V 1mV ±(1.2% + 2 Digits)
 Resistance 0.1Ω – 60MΩ 0.1Ω  ±(1.0% + 4 Digits)
 Capacitance 0.01nF – 4000µF  0.01nF ±(3.0% + 5 Digits)
 True RMS Measurements ACV, ACA
 AC Bandwidth 2KHz
 Digital Display 6000
 Non-Contact Voltage (NCV) Yes
 Overrange Indication Yes
 Continuity Yes
 Diode Test Yes
 Jaw Size 16mm Open Jaw
 Input Impedance >10MΩ DCV & >10MΩ VAC
 Min Max Yes
 Data Hold Yes
 Back Light Yes
 Enclosure Double injection moulding
 Low Battery Indication Yes
 Batteries 2 x AAA
 Weight 259g
 Dimensions 230 x 44 x 66mm
 Warranty 2 Years
 Safety Specs IEC61010-1 CAT IV 600V






Accessories for the MT390 Multifunction Installation Tester

  • Carrying Case
  • Neck Strap
  • Test Leads (Test Leads with remote switch, AUS Socket Test Lead, Insulation Test Lead, Phase rotation Test Lead with Croc Clips)
  • USB Cable
  • Software
  • 3 Wire Cable (Earth Resistance Test Leads)
  • Aux Earth Spikes
  • 8 x AA Rechargeable Batteries
  • Instruction Manual
