Connected Safety
With real-time direct-to-cloud connectivity and data insights, the award-winning G6 wearable single-gas detector helps your workers get the help they need quickly in the event of an incident.
And enables you to take timely and informed action to improve safety, manage compliance and boost efficiency.
The G6 Connected Single Gas Detector by Blackline Safety is the world’s most capable, connected lone worker device with single gas detection.
CONNECTED SAFETY | EXPANDABLE | RELIABLE
The G6 single-gas detector by Blackline Safety helps you get ahead of your workplace hazards, drive to zero incidents, and uplevel your operations with the most comprehensive, cost-effective, and connected single-gas detector available.
With cloud connectivity and data insights, the new G6 wearable single-gas detector helps you quickly respond to - and prevent - safety incidents and manage compliance.
Choose single gas detection for:
-
Hydrogen Sulfide (H2S)
-
Carbon Monoxide (CO)
-
Oxygen (O2)
-
Sulfur Dioxide (SO2)

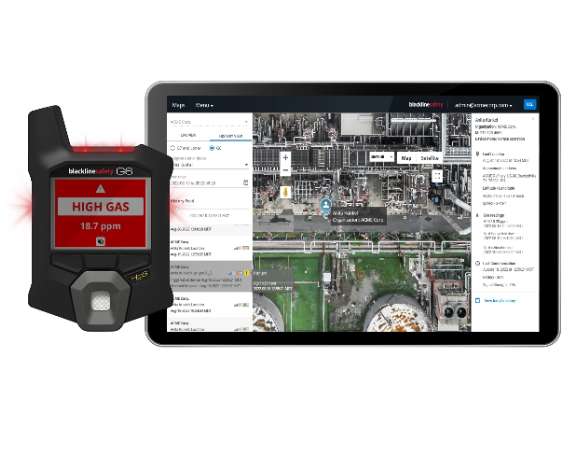

Streamline Incident Response
Take quick and informed action with vital and up-to-date location and safety status information, so you can better protect your workforce.
- Rapidly locate workers via integrated GPS and real-time connectivity
- Trigger an emergency SOS manually during critical situations for immediate help
- Deliver real-time notifications to emergency contacts during high urgency events to keep people informed and aware of hazardous environments

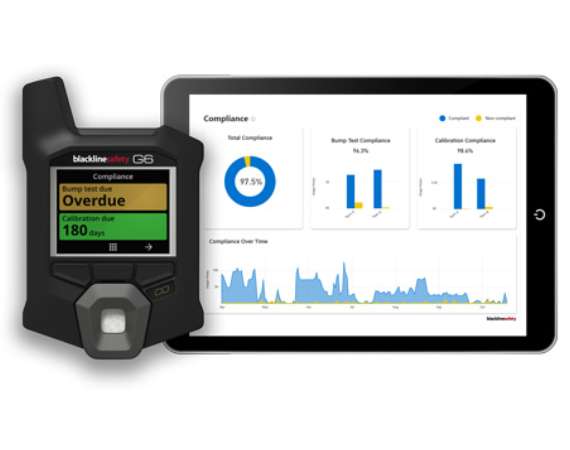

Improve Safety and Compliance
Automated analytics through Blackline Live, gives you proactive insights to improve worker safety and manage compliance - with single-source data all in one platform.
-
Gain insights into how devices are used, calibrated and bump tested to understand worker behavior and boost compliance.
-
Explore gas exposure data to identify alarm notification patterns and take action to mitigate.
-
Leverage usage patterns and gas exposure data to inform training and tweak procedures for better compliance and safer worksites
-
Enhance adoption with a connected easy-to-use, intrinsically safe devices that requires minimal maintenance
DETAILED SPECIFICATIONS | |
|---|---|
STANDARD FEATURES | Emergency SOS Find My G6 Over-the-air configurations Automatic over-the-air firmware updates Automatic bump tests and calibrations through G6 Dock Location Beacon support |
GAS MONITORING FEATURES | Single-gas monitoring - CO, H2S, O2, or SO2 High gas notification Low gas notification Live gas on display Sensor over limit (OL) notification Sensor under limit (UL) notification Short-term exposure limit (STEL) notification Time weighted average (TWA) notification Bump test and calibration notification Bump test and calibration failure notification |
SIZE & WEIGHT | Size: 71mm x 110mm x 37mm (2.8” x 4.3” x 1.5”) Weight: 146g (5.2 oz) |
USER INTERFACE | 240 x 320 pixel graphical, high contrast, 6-bit color liquid crystal display Menu system and power-on driven by three button keypad Multi-language support: EN, FR, ES, DE, IT, NL, PT |
USER NOTIFICATION | Visual: Color display and multi-color lights on top and side Sensory: Vibrating Audible: ~95 dB @ 30 cm (11.8”) |
POWER & BATTERY | Rechargeable Li-ion battery: 1200 mAh Battery life: Up to 12 months at 20°C (68°F), depending on configuration, service plan and use Charge time: 4 hours |
APPROVALS | SAR, RoHS, CE, RCM Contains FCC ID: W77BLG6C1 IC: 8255A-BLG6C1 FCC ID: XF6-B001P4V2P1, IC: 8407A-B001P4V2P1 Canada & USA: Class I Division 1 Group A,B,C,D T4; Class I Zone 0 AEx da ia IIC T4; Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga ATEX: Ex ia IIC T4 Ga |
LOCATION TECHNOLOGY | GPS Radio: 48-channel high sensitivity Assisted-GPS: Yes GPS Accuracy: ~5 m (16 ft) Outdoors Location update frequency: During high urgency events and every 5 minutes to 6 hours, depending on configuration and service plan |
CELLULAR COMMUNICATION | LTE-M and NB-IoT |
ENVIRONMENTAL | Storage temperature: -30°C to 60°C (-22°F to 140°F) Operating temperature: -20°C to 55°C (-4°F to 131°F) Charging temperature: 0°C to 45°C (32°F to 113°F) Ingress Protection: Designed to meet IP67 |
WARRANTY | CO, H2S, O2: Four-year limited warranty SO2: Two-year limited warranty |
Dock
G6 Dock is the simple solution to easily calibrate, bump test and charge your G6 wearable single-gas detector. Simply plug it into a power supply and a gas cylinder and it's ready to use. Harnessing the connectivity of the G6 device, G6 Dock communicates device test data to the cloud for automated compliance tracking and reporting, without needing an ethernet connection.
Multi Charger
G6 multi-unit charger is available in a 5-unit or 25-unit configuration. Streamline operations with the ability to conveniently and efficiently charge multiple G6 devices at the same time.
Location Beacon
Location Beacon boosts location transmissions where GPS alone may be insufficient. Positioned both indoors and outdoors, the beacon emits location signals to make proximity detection from a paired Blackline G6 device possible. The optionality to upload floor and site plans into the Blackline Live portal provides you with better situational awareness so your workers can stay safe in complex facilities.
GAS | SENSOR TYPE | RANGE | RESOLUTION |
|---|---|---|---|
CARBON MONOXIDE (CO) | Electrochemical | 0–500 ppm | 1 ppm |
HYDROGEN SULFIDE (H2S) | Electrochemical | 0–100 ppm | 0.1 ppm |
OXYGEN (O2) | Pumped electrochemical | 0–25% vol | 0.1% vol |
SULFUR DIOXIDE (SO2) | Electrochemical | 0–100 ppm | 0.1 ppm |
BATTERY AND CHARGING | |
|---|---|
BLACKLINE LIVE | • Cloud-hosted safety monitoring, device configuration. SOC2 Type 1 compliant
• Real-time alert management (visual and audible), including alert type, status, map location, and event history with notes
• Over-the-air device configuration and profile management |
BLACKLINE ANALYTICS | • Direct access to centralized device data (events, alerts, usage, exposure)
• Historical event and alert logs for audit and compliance review
• Bump test and calibration records with downloadable certificates |
