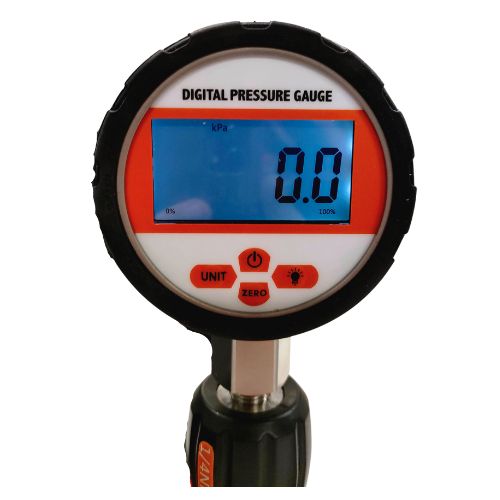

PCM580 Digital Pressure Gauge
Digital Pressure Gauge
|
Code |
Range |
|
INPCM5801.6MS-C5
|
0 to 1600 kPa
|
|
INPCM5801MG-C5
|
0 to 1000 kPa
|
|
INPCM5802.5MS-C5
|
0 to 2500 kPa
|
|
INPCM58040MS-C5
|
0 to 40000 kPa
|
|
INPCM580600kG-C5
|
0 to 600 kPa
|
|
INPCM58060MS-C5
|
0 to 60000 kPa
|
|
INPCM580N8M-C5
|
-100 to 1000 kPa
|
|
INPCM580NP100K-C5
|
-100 to 100 kPa
|
|
Pressure range |
Choose from the below ranges |
|
Micro pressure range |
0~10 / 16 / 25 / 40 / 60 / 100 kPa |
|
Negative pressure range |
-100~0 kPa |
|
Mirco pressure compound range |
-0~10 / -16~16 / -25~25 / -40~40 / -60~60 / -100~100 kPa |
|
Compound range |
-0.1~16 / 0.25 / 0.4 / 0.6 / 1 / 1.6 MPa |
|
Conventional range |
-0~0.16 / 0.25 / 0.4 / 0.6 / 1 / 1.6 / 2.5 / 4 MPa |
|
Medium and high pressure range |
0~6 / 10 / 16 / 25 / 40 / 60 MPa |
|
Ultra high pressure range |
0~100 MPa |
|
Pressure Reference |
Gauge Pressure, Absolute pressure, Sealed gauge pressure |
| Accuracy |
0.5%FS |
| Size | 80mm |
| Fitting | 1/4 NPT |
| Backlight colour | Blue |
| Operating temp. | -10~70C |
| Compensated temp. | 0~60C |
| Electric protection | Anit electromagnetic interference design |
| Sampling frequency | 5 sec |
| Overpressure | 150%FS |
|
Long term stability |
+0.2%FS/year (typical) |
|
Supply battery |
2 x AAA batteries |
| Material | Stainless Steel for shell, 316L for isolation diaphragm |
| Medium Compatibility | All media compatible with stainless steel 316 |
