Product Code: ING103A

Price: $51.77
Ex Tax: $47.06

Available Options

* Pressure Gauge Range:

Select your Pressure Gauge Range from the dropdown list

- +

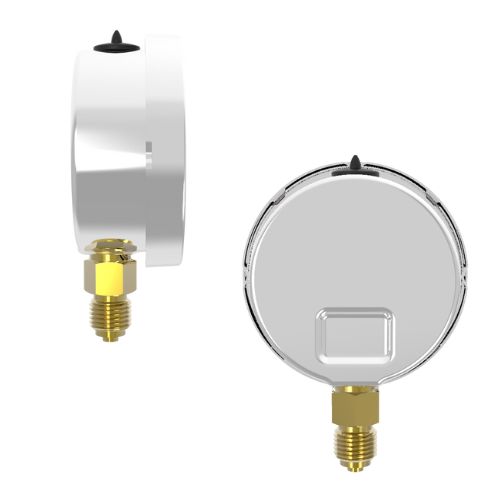

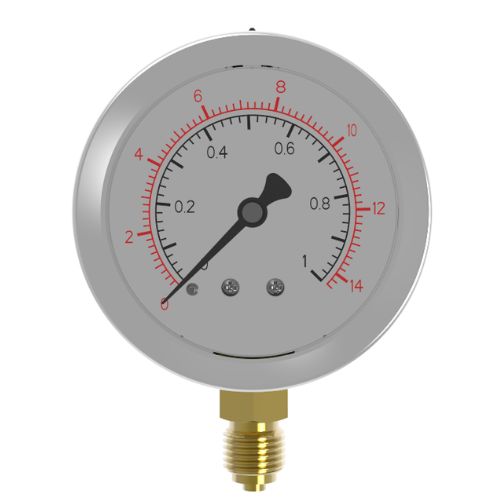

The Huketek G103A 100MM series pressure gauges are filled with glycerine oil, which is used to resist vibration and pulsation, these gauges are suited to a broad range of plant, process, hydraulic, and fluid power applications.



  • Liquid Filled: Glycerine

  • Wetted Part: Brass + Phosphor bronze

  • Body: SS304

  • Connection Type: 2 Parts

  • Protection: IP68

  • Pressure Range: VAC~0.6bar~1000bar

  • Bayonet bezel

  • Accuracy: 1.0%



The C103A is available in 4 ranges = 0-1000 kPa, 0-1600 kPa, 0-2500 kPa, and 0-4000 kPa
  • ING103A-B4-A1000
  • ING103A-B4-A1600
  • ING103A-B4-A2500
  • ING103A-B4-A4000



 Specifications for the G103A Glycerine filled 40mm Pressure Gauge



 Case

 SS304, Polished

 Ring

 SS304, Polished

 Window

 Polycarbonate

 Dial

 Aluminum

 Pointer

 Aluminum

 Connection

 Brass

 Movement

 Brass

 Bourdon tube

 Phosphorus Bronze

 Thread size

 1/8'’,1/4'’,3/8'’,1/2'’

 Accuracy

 1.6%

 Pressure range

 VAC~9PSI~15000PSI

G103A & G104A dimensions



G103 Series Gauge Dimensions
