3000A AC True RMS Clamp Meter

Brand: Major TECH
Product Code: ELMT745

Price: $308.00
Ex Tax: $280.00

- +

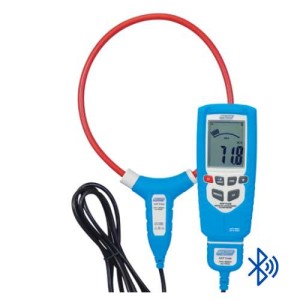

The Major TECH MT745 3000A AC True RMS Clamp Meter is ergonomically designed for ease of use in confined spaces. The MT745 has a large backlit LCD display making it easier to read measurements. Data can be kept on screen using the data hold function. The Log Key will reload the current changes with the known period of time and data and store it in the instrument. Send data stored to the mobile app using the Bluetooth communication app.

Features of the MT745 AC True RMS Clamp Meter

  • AC current True RMS measurements
  • 3000 count backlit display LCD
  • Analogue Bargraph
  • Bluetooth interface
  • 3000A AC flexible clamp
  • Data Hold
  • Inrush Current
  • Frequency Measurement
  • Recording intervals set at 5 sec, 10 sec, 20 sec and 1 minute

Specifications of the MT745 AC True RMS Clamp Meter

 Function Range Resolution Accuracy
 AC Current 0.01A – 3000A  0.01mA ±(3.0% + 3 Digits)
 Frequency 50Hz – 400Hz 0.1mA ±3.0% + 3 Digits)
 True RMS Measurements ACA
 AC Bandwidth 50 to 400Hz
 Bargraph 3000
 Data Logging Yes
 Overrange Indication Yes
 Jaw Size 150mm Flexi Clamp
 Min Max Yes
 Peak Hold Yes
 Data Hold Yes
 Back Light Yes
 Enclosure Moulded case
 Low Battery Indication Yes
 Batteries 2 x AAA
 Weight 315g
 Dimensions 230 x 76 x 40mm
 Warranty 2 Years
 Safety Specs IEC61010-1 CAT IV 600V






Accessories for the MT745 AC True RMS Clamp Meter

  • Carrying Case
  • Software
  • 2 x AAA Batteries
  • Instruction Manual
