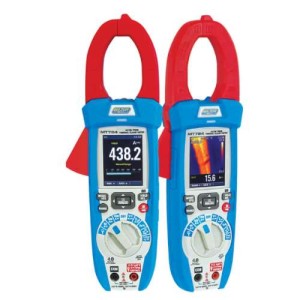

1500V DC Thermal Imaging Clamp Meter
The MT784 is a 1500V DC Thermal Imaging Clamp Meter. This meters measures 1000A AC/DC and incorporates an 80 x 80 pixel Thermal Imager with a range from -20ᵒC to 260ᵒC. This Thermal Imaging Clamp Meter has a large 6000 count colour TFT LCD display that provides fast sampling times and high accuracy measurements.
The clamp meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements, plus the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on.
This Thermal Imaging Clamp Meter has a built-in record and store function and displays trend capture, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The MT784 auto powers off when the clamp meter is not in use.
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC.
Features of the MT784 DC Thermal Imaging Clamp Meter
- 6000 count 2.4” TFT Colour LCD display
- Ø37mm Cable Clamp size
- 1000A AC/DC
- 1500V DC and 1000V AC
- AC+DC TRMS Voltage 1000V
- INRUSH Current Measurements
- Resistance to 60MΩ
- Capacitance to 100mF
- Frequency to 10MHz
- K-type Temperature -40⁰C to 1000⁰C
- Thermal Temperature -20⁰C to 260⁰C
- 80×80 pixel Thermal Imager Resolution
- Image Frequency to 50Hz
- Logging function with Trend Capture
- NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Max, Min and Average with Time Stamp
- Optional MT740 Flexible Coil Clamp for measurement to 3000A AC.
Specifications of the MT784 DC Thermal Imaging Clamp Meter
Clamp Meter Function
| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 1500V | 0.1mV | ± (0.5% + 5 Digits) |
| AC voltage | 0.001V – 1000V | 1mV | ± (1.2% + 5 Digits) |
| DC Current | 0.01A – 1000A | 0.01A | ± (2.0% + 8 Digits) |
| AC Current | 0.01A – 1000A | 0.01A | ± (2.5% + 5 Digits) |
| AC+DC TRMS Voltage | 0.001A – 1000A | 1mV | ± (2.5% + 20 Digits) |
| Duty Cycle | 10% – 90% | 0,1% | ± (1.2% + 8 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ± (0.8% + 5 Digits) |
| Frequency | 0.01Hz – 10kHz | 0.01Hz | ± (0.2% + 5 Digits) |
| Capacitance | 0.01nF – 100mF | 0.01nF | ± (3.0% + 8 Digits) |
| Temperature K-type | -40 to 1000°C | 0.1°C | ± (1.5% or ± 3°C) |
| IR Temperature | -20°C – 260°C | ± (3°C or ± 3%) | |
| Continuity | Yes | ||
| Diode test | Yes | ||
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50Hz to 60Hz | ||
| Digital Display | 6000 TFT | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Records events and Trends | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ DCV & VAC | ||
| Min Max | Yes | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 7.4V Rechargeable | ||
| Weight | 550g | ||
| Dimensions | 270 x 95 x 42mm | ||
| Warranty | 2 Years | ||
| Safety Specs | IEC61010-1 CATIV 600V | ||
Imaging and Optical Data
| Function | |||
| Field of View | 21° x 21°/0.5m | ||
| Spartial resolution (IFOV) | 4.53mrad | ||
| Thermal sensitivity/NETD | <0.1°C @ +30°C/100mK | ||
| Image Range | 50Hz | ||
| Focus mode | Focus free | ||
| Focal Length | 7.5mm | ||
| Focal Plane Array (FPA) / Spectral range | uncooled microbolometer / 8-14μm | ||
| IR Resolution | 120 x 120 | ||
| Display | 2.4″ LCD, 240 x 320 pixels | ||
| Image Modes | IR Image, Visual image | ||
Picture in Picture
| Function | |||
| Colour Palettes | Iron, Rainbow, Grey , Grey Inverted, Feather | ||
| Spot | Center spot | ||
| Automatic hot/cold detection | Hot or cold markers | ||
| Emmisivity correction | Variable 0.01 to 0.99 in 0.01 steps | ||
| Measurement corrections | Emissivity, reflected temperature | ||
| Interfaces | Bluetooth BLE | ||
Accessories for the MT784 IR Thermal Imaging Clamp Meter
- Hard Carrying Case
- Test Leads
- Temperature Probe
- K-Type Adaptor
- Instruction Manual
- Rechargeable Li-ion Batteries
- Battery Charger
